Plasticine Clay: Multiple Uses in Mold Making

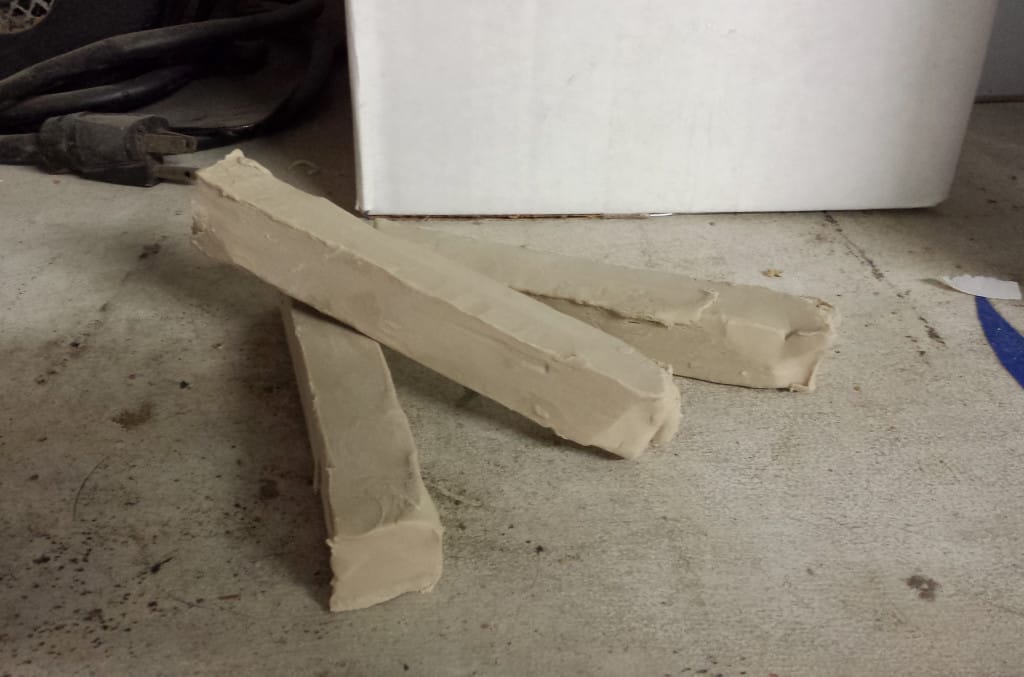

Poly Plasticine is a non-hardening, sulfur-free modeling clay. It is non-toxic, odorless, and has a smooth, firm consistency.

Plasticene Clay - Polytek Development

It’s great for sculpting, which might be what most people think of when they hear modeling clay; however, we use this clay for varied purposes in our mold shop. You may be able to incorporate some of these uses into your everyday mold making routine.

We mentioned earlier that the clay that we use is sulfur-free. This is important because sulfur can cause cure inhibition in platinum-cured silicone rubber. It is best to use an oil-based, sulfur-free clay, especially when working with platinum silicones.


Clay as Caulking

For the purposes of sealing, clay can often be easier to work with than hot glue or silicone caulking (and clay is recyclable!), especially when it’s warmed for easier application. We always keep a batch of clay in our oven, set at 140°F, so it’s ready to go at any time.

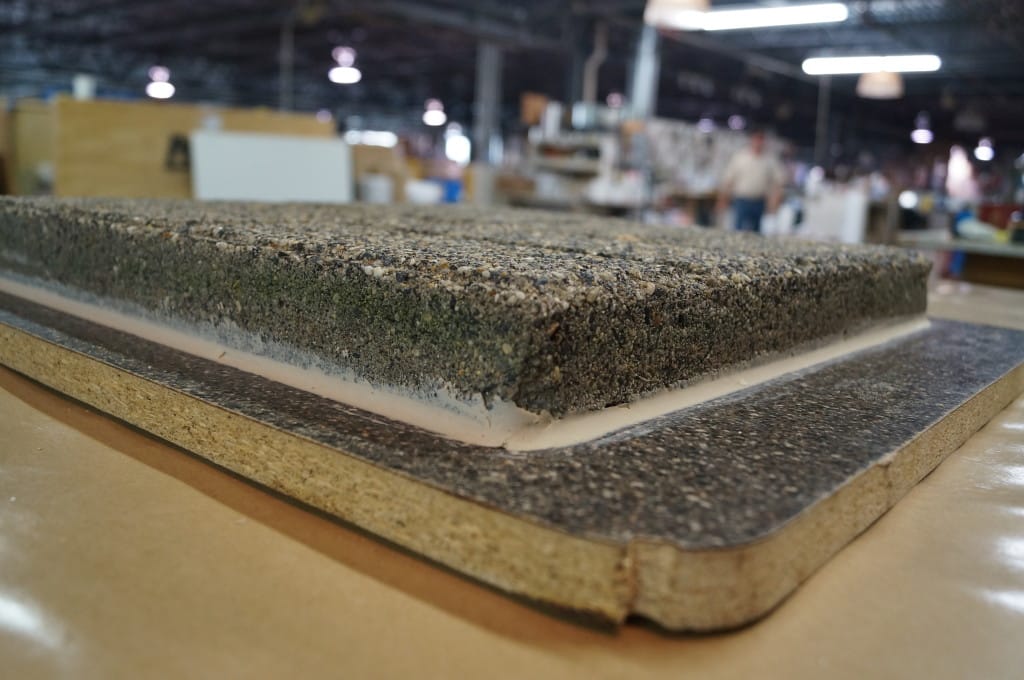

The photo below shows the edges of this stepping stone sealed with clay. This is a common practice that helps prevent rubber from leaking beneath the stone once the mold box is constructed around the stone and rubber is poured over it to make the mold (shown in the second picture below).

Seal Mold Box Edges with Clay

DSC05270

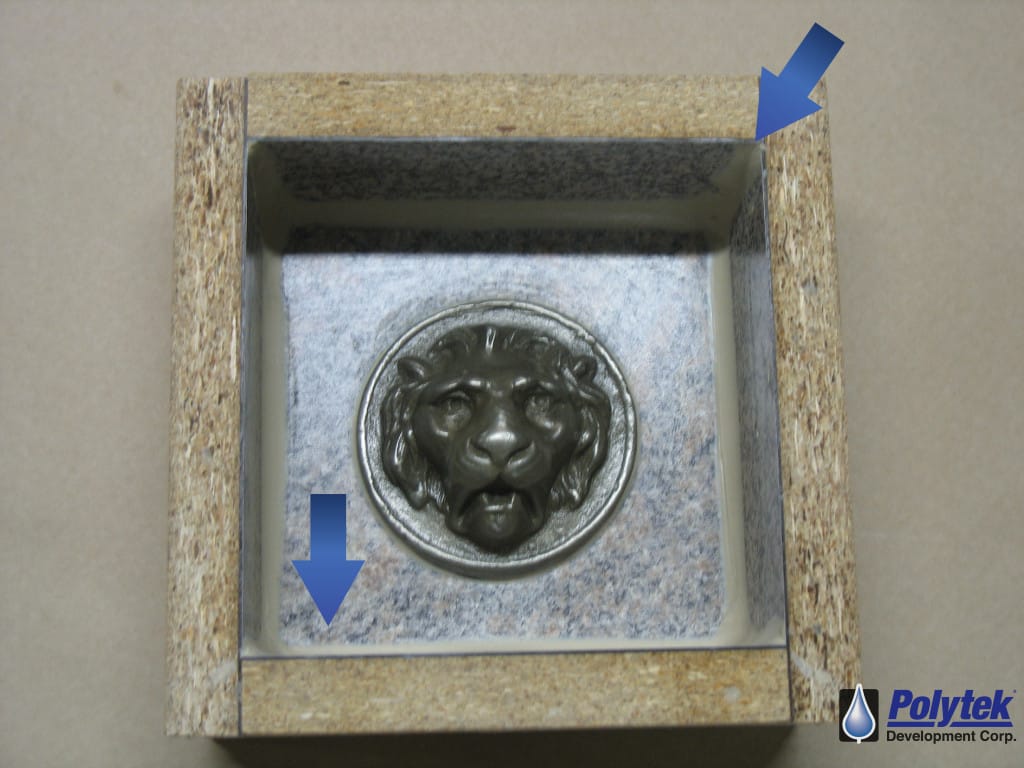

In a similar scenario, pictured below, clay is used to seal the interior edges of the mold box to help prevent rubber from leaking outside of the mold box [see this project tutorial here].

Seal Mold Box with Clay

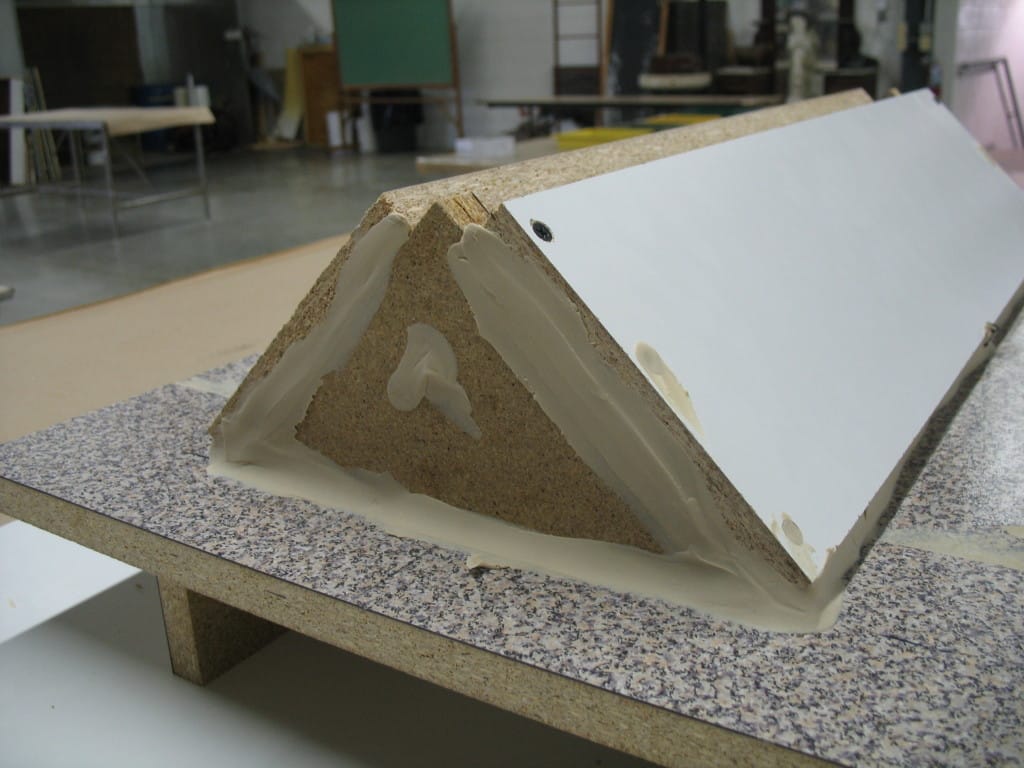

Below, clay is used to seal the exterior edges of a mold box that’s being used to make a two-part baluster mold.

Seal Mold Box for Baluster

Plasticine clay can also be used to the seal the edges of mold shells. The mold shell below is constructed from Poly 1512X polyurethane plastic; the clay seals the edges as well as the areas around the hardware that is securing the mold shell to the base board.

Clay - Sealing Edges of Mold Shell-01

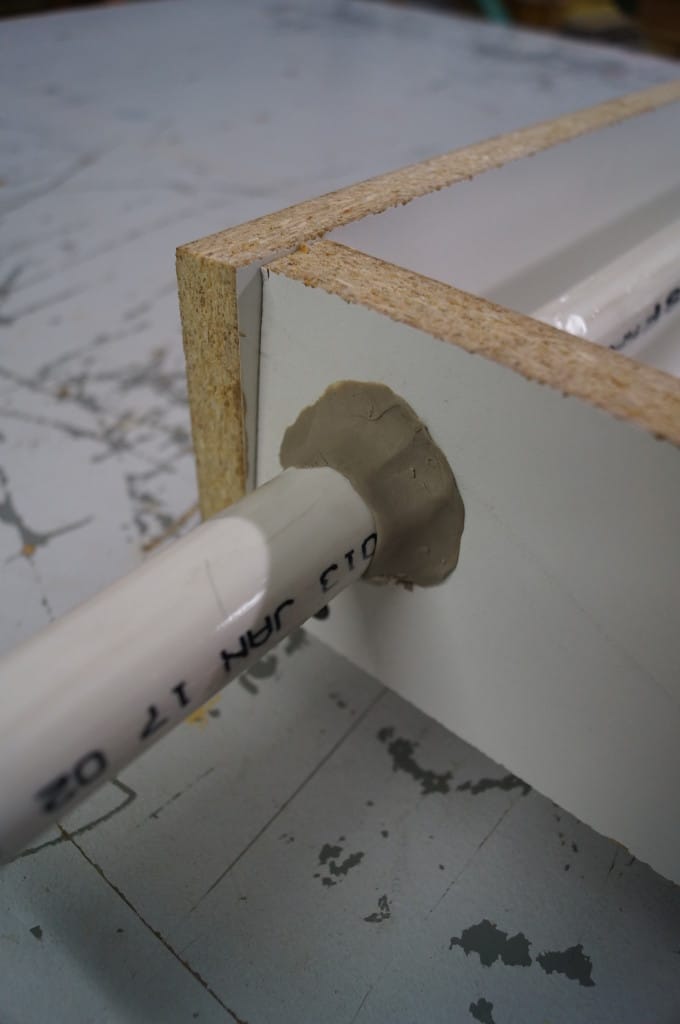

The plastic tubing pictured below is being used to create a through-hole in the mold. Clay is applied around the tube to help prevent leaks while the mold is being made.

Using Clay as Caulk

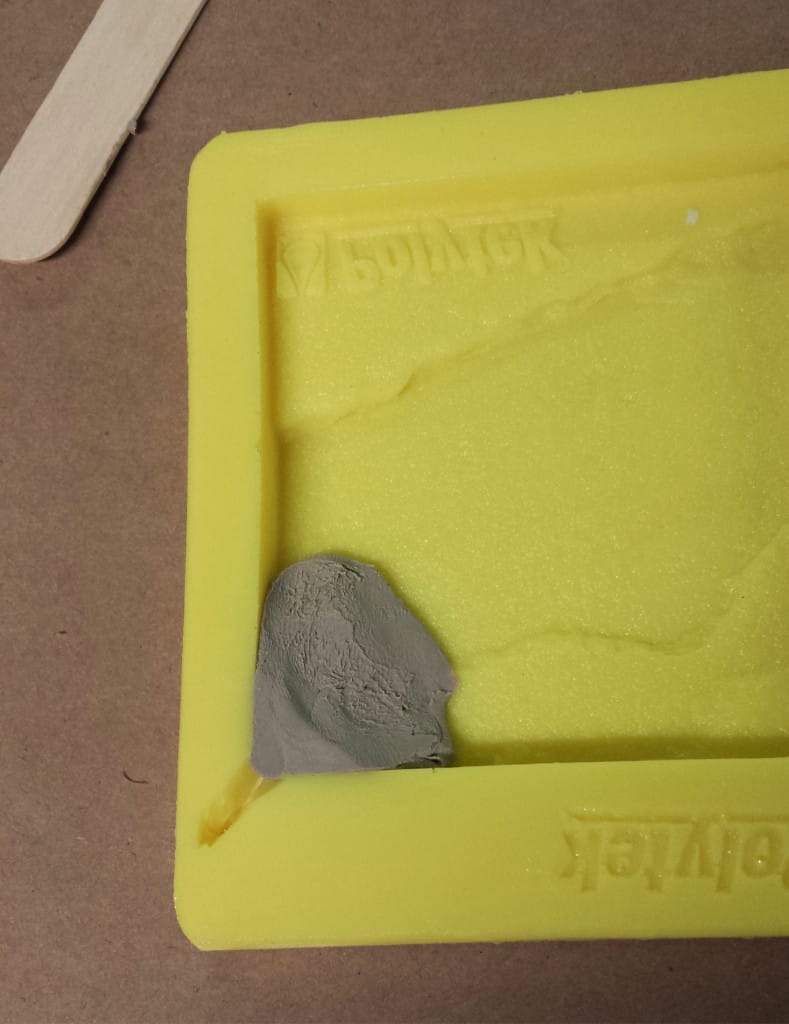

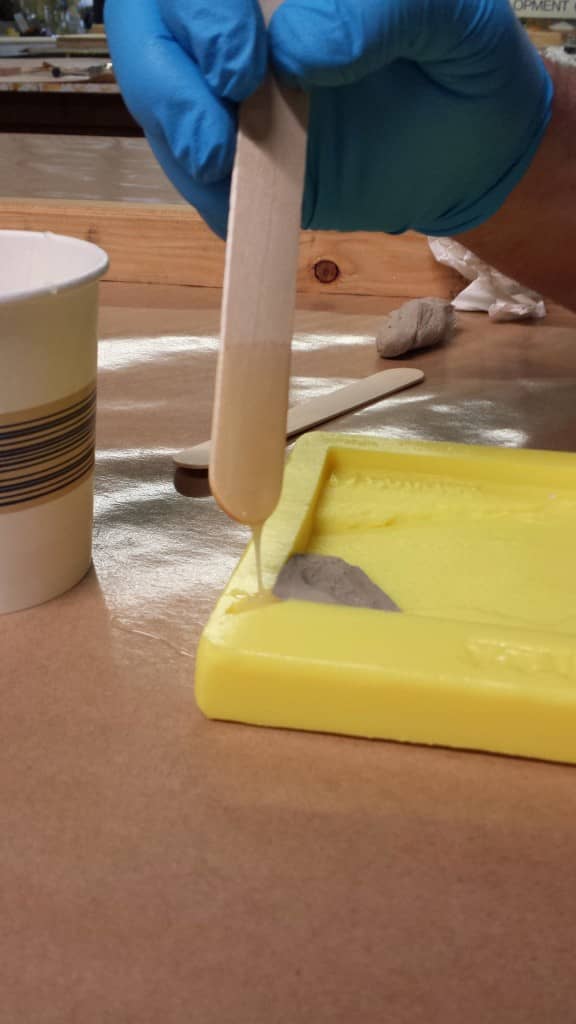

In the picture below, clay is being used to partition off an area of the mold that needs to be repaired with PolyBond adhesive.

Position Clay in Corner-01
Apply PolyBond to Corner - Plug with Clay

Clay as Mold Boxes & Containment Areas

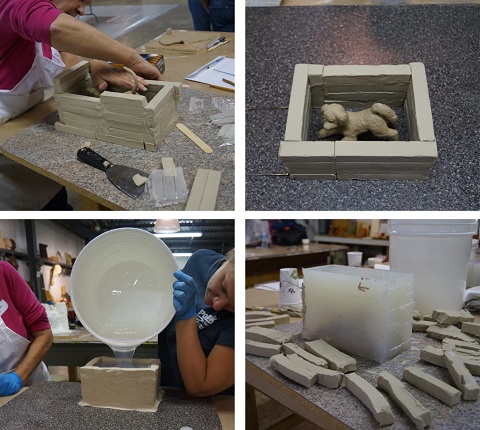

Not only is plasticine clay great at sealing mold boxes, it can can actually serve as a “mold box”, or containment area, itself. An example is pictured below.

Building a Clay Mold Box-01

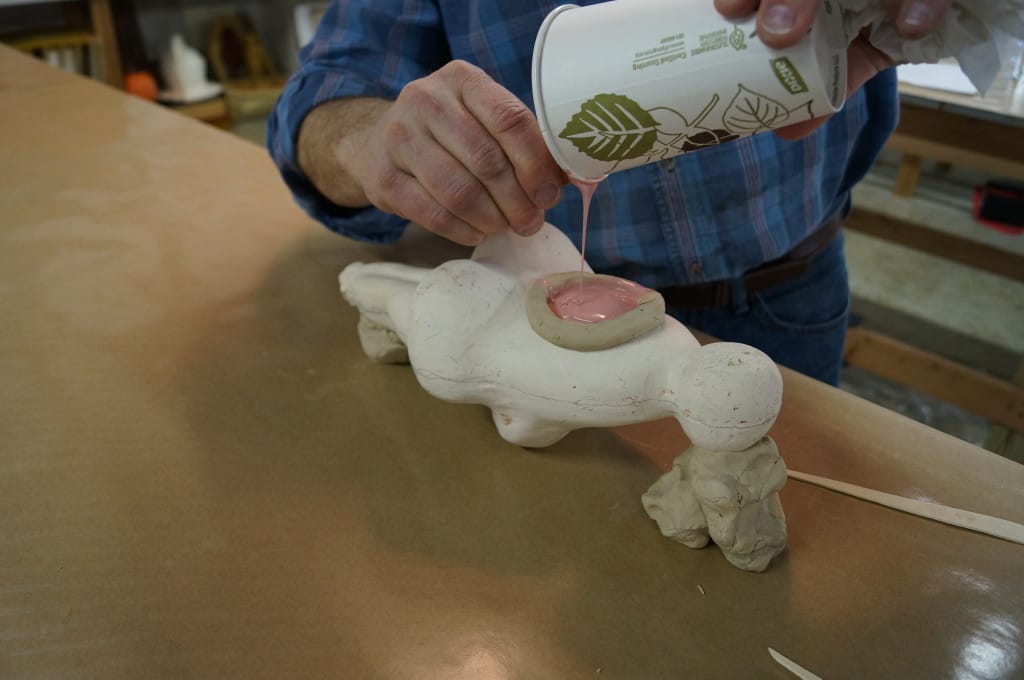

In the picture below, we use clay to create a small containment area on the model to test for cure inhibition against the model material.

Clay for Test Cure

Two-Part Block Molds

Clay is an integral part in the making of two-part block molds, which are constructed by pouring one piece of the mold, allowing it to cure, and then pouring the second piece.

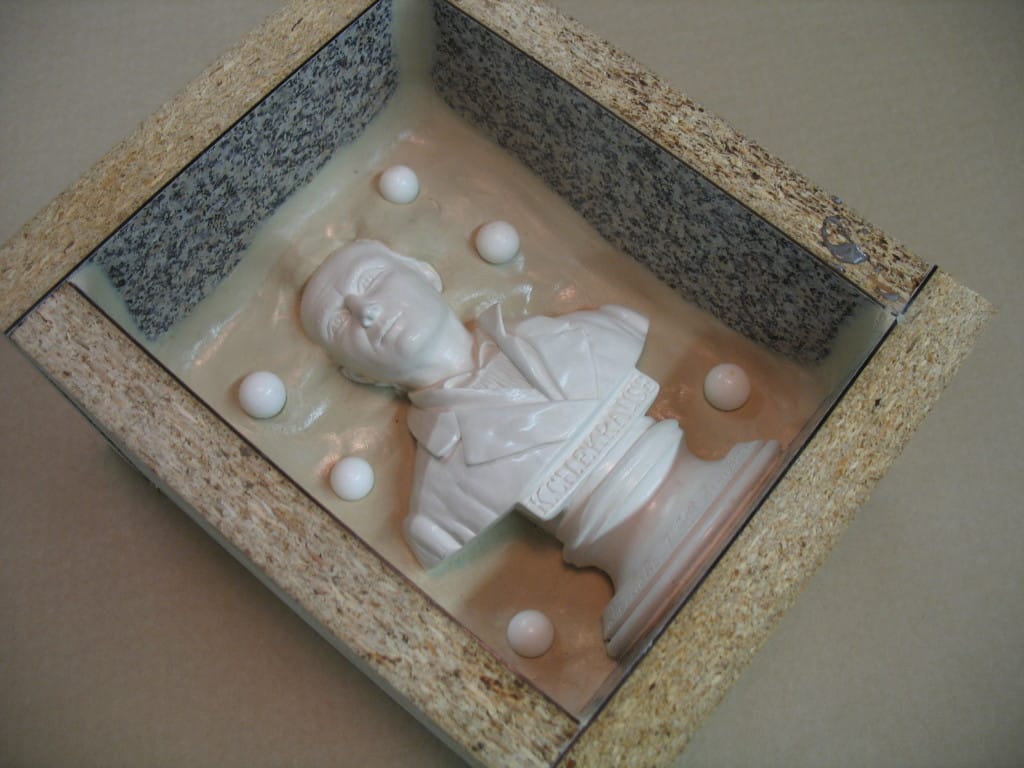

Before pouring rubber to make the first half of the mold, one portion of the model is embedded in clay, up to the desired parting line (example below).

Two-Piece Block Mold - Using Clay
Polytek Silicone Rubber


Once the rubber has cured, the clay is removed and the second half of the mold is made.

Poured Blanket Molds

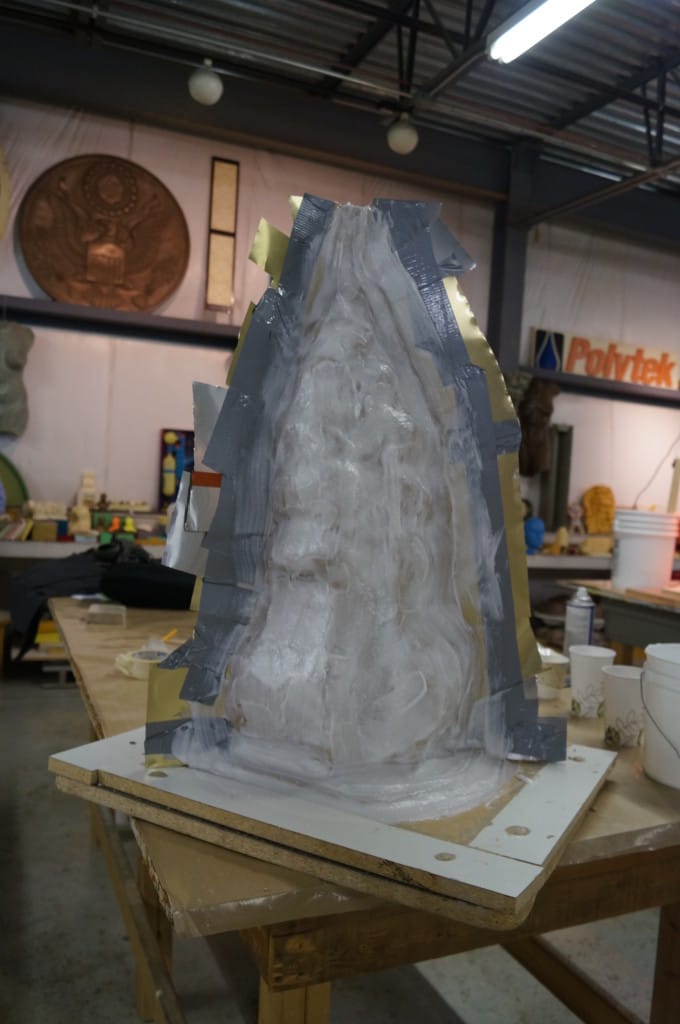

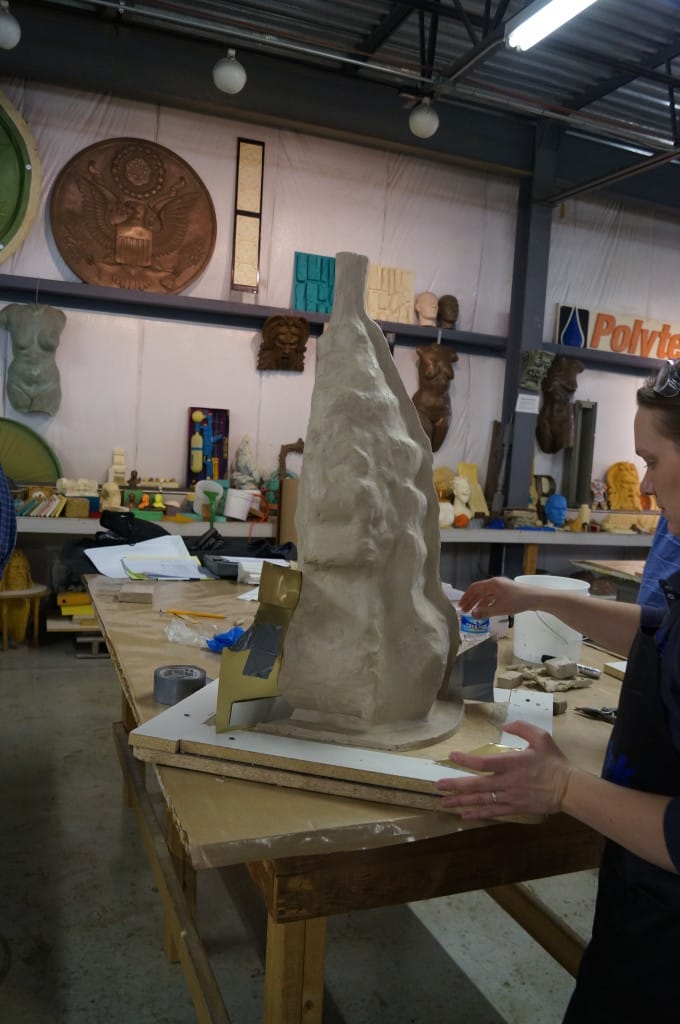

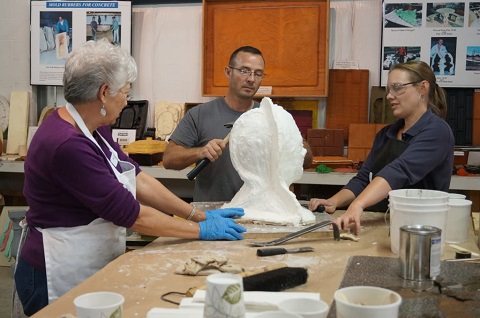

Clay also plays a very important role when making poured blanket molds. In this process, the model is covered in a layer of clay (plastic wrap is often placed over the model before doing this) and then a mold shell is constructed around it (pictures below).

Following construction and cure of the mold shell, the shell and clay are removed and then the shell is re-positioned back over the model. Mold rubber is then poured into the mold shell, covering the model and filling the space that the clay once occupied.

Clay for Blanket Mold


Plasticine Clay for Blanket Mold
DSC04030

Keying

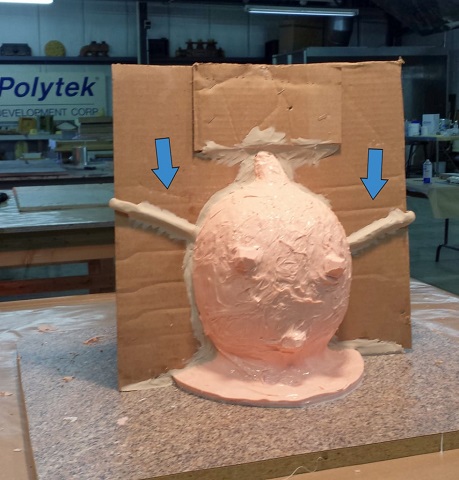

Keys are tongue-and-groove or button-like impressions that align molds or mold shell sections. The brush-on silicone mold pictured below is ready for mold shell construction. Before brushing on the first half of the mold shell, a cardboard shim is constructed to establish a parting line for the two halves of the mold shell and then two clay keys are positioned on the shim. The first half of the mold shell is brushed over the shim, clay keys, and mold. When the second half of the mold shell is constructed, the keys will provide an area of impression where the two halves will align nicely.

Clay Keys for Mold Shell-01
Clay Keys on Mold Shell-01

Shims to Make Parting Lines for Mold Shells

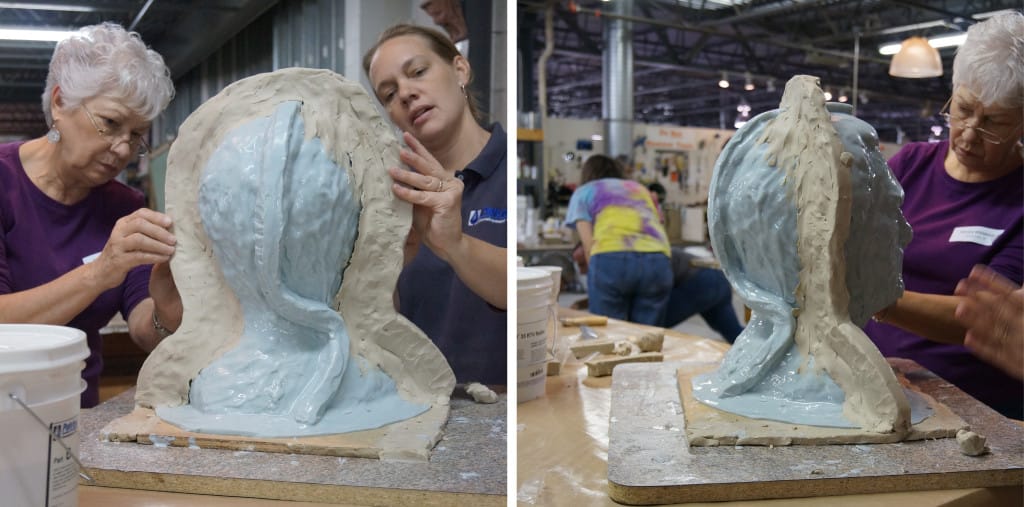

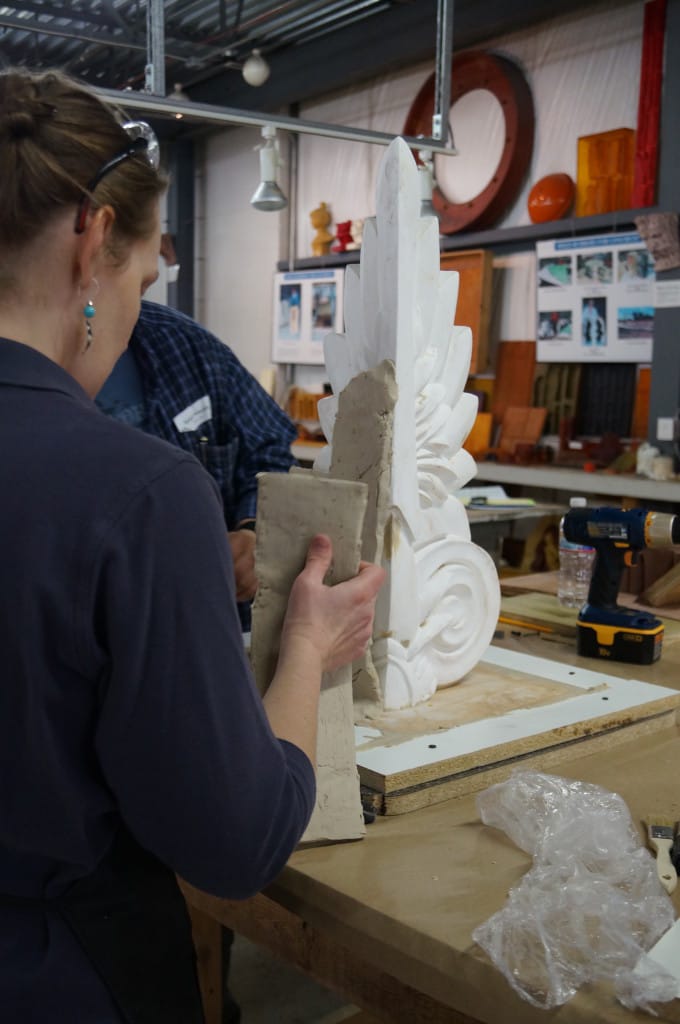

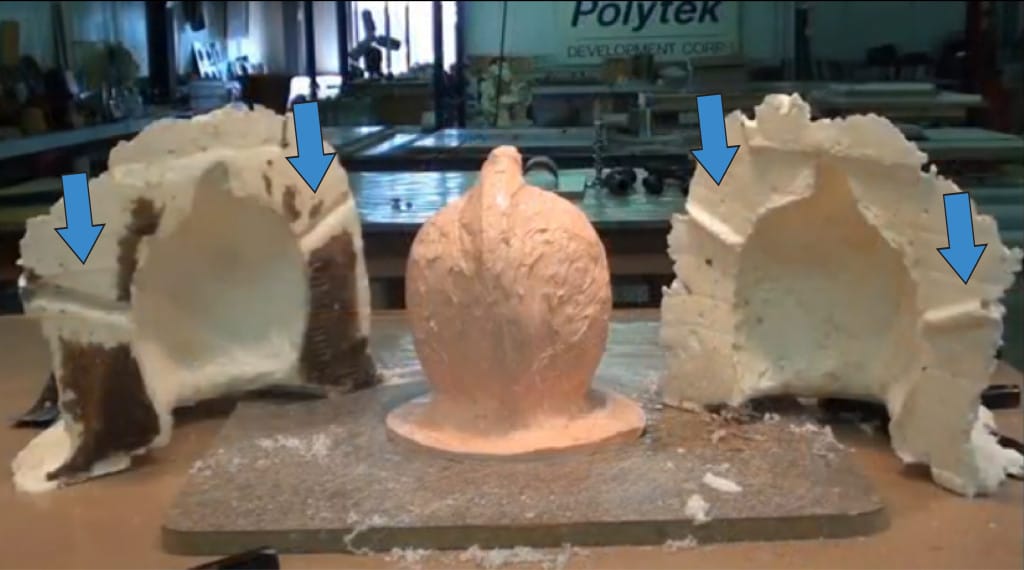

While cardboard was used to make a shim in the example above, clay is used in the example below. The finished mold shell is also pictured.

Plasticine Clay Parting Lines-01
Two-Part Polytek Plastic Mold Shell

Modifying Models

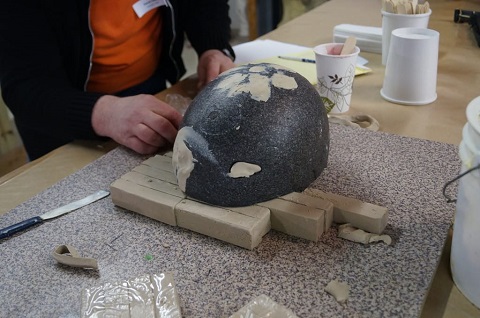

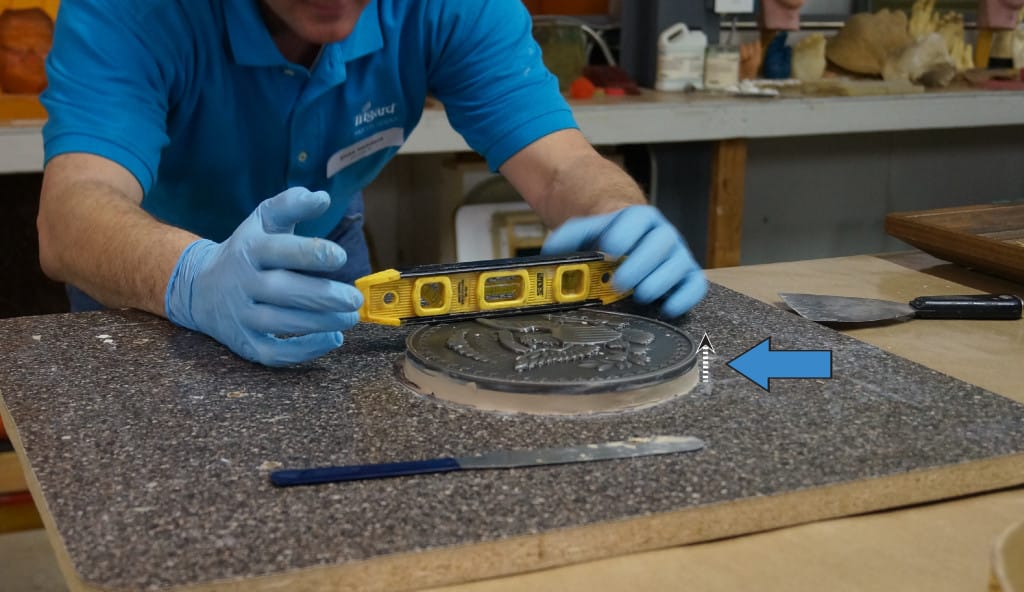

Clay can be used to modify models before the mold making process. For instance, the person making a mold of this medallion wanted the final concrete castings to be thicker, so, prior to making the mold, he increased the height of the piece by adding a uniform layer of clay beneath the medallion.

Increase Height of Model with Clay-01

In this example, the holes in the model below were filled with clay prior to mold making because the holes were not wanted in the final castings.

Plugging Holes with Clay

What else do you use clay for around your shop?
